Standard Composite Filters
Miami Filter’s VCOM Series of vertical hi-rate composite commercial sand filters are engineered to provide dependable, non-corrosive filtration performance for demanding commercial and recreational water treatment applications.
Available in both single and dual tank configurations with vessel diameters ranging from 42 to 93 inches, the VCOM Series offers flexible sizing options to accommodate a wide range of system capacities and turnover requirements.
Constructed using durable composite materials, the VCOM Series is specifically designed for environments where corrosion resistance, reduced maintenance, and long-term reliability are critical.
Certified Construction
Each system complies with NSF Standard 50 requirements and is manufactured with fully flanged connections, eliminating the need for glued piping connections while simplifying installation and serviceability.
Designed for a standard operating pressure of 50 psi with higher pressure ratings available upon request, the VCOM Series includes an impressive array of standard features to support a variety of high demand commercial applications.
Every VCOM Series filter system is backed by Miami Filter’s 25-year limited warranty, and the factory-installed underdrain system along with all internal piping components are guaranteed for the life of the tank.
Design Features
- Designed, engineered, and manufactured in-house
- National Sanitation Foundation compliant
- ASME accredited vessels
- Under drain system and all internal piping guaranteed for life of the tank
- Gauge panel, automatic and manual air bleeder valves, backwash sight glass, emergency pressure relief valve, media dump port, and winterizing drain are all standard accessories
- Includes pre-engineered and hydraulically balanced
internal piping for control of system velocity - Standard exterior color is industrial grey
- Ozone resistant lining, dual lever control, and automatic control optional accessories available

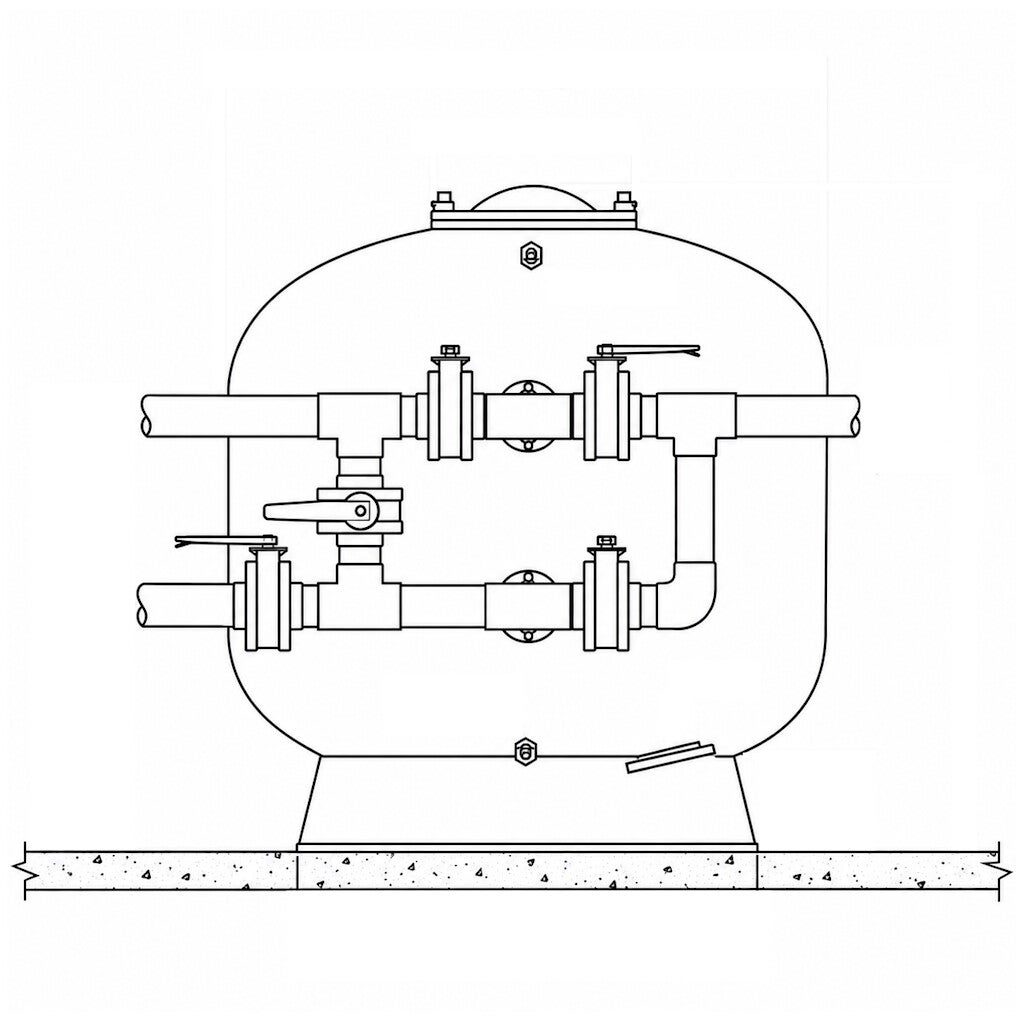

Single Tank Systems

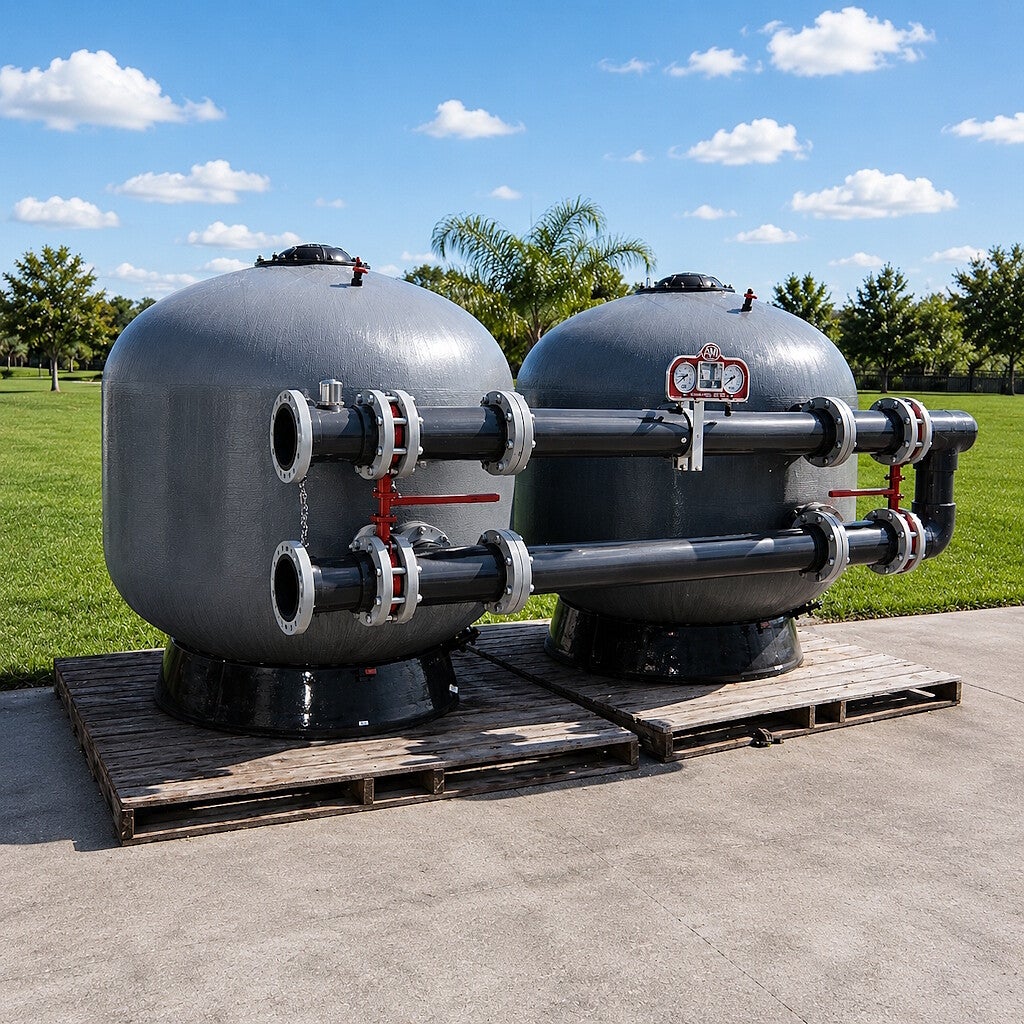

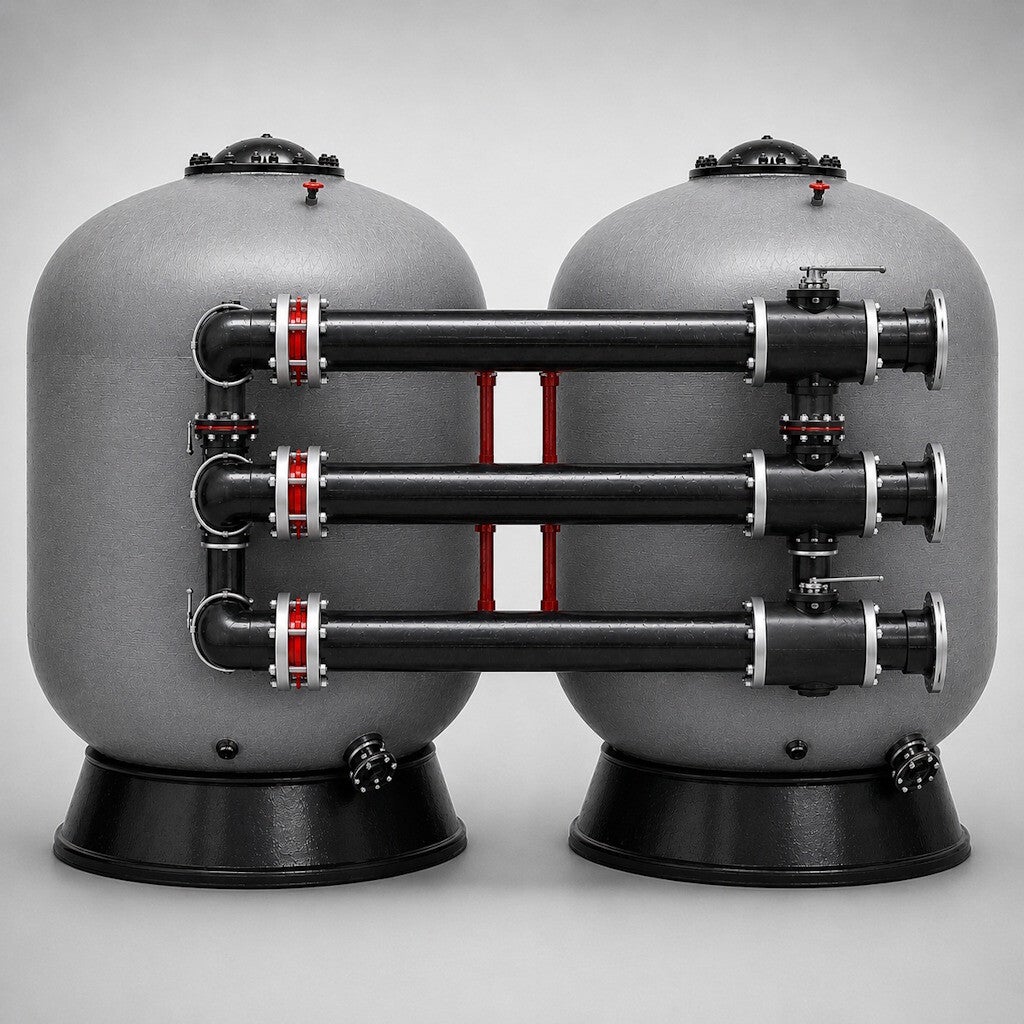

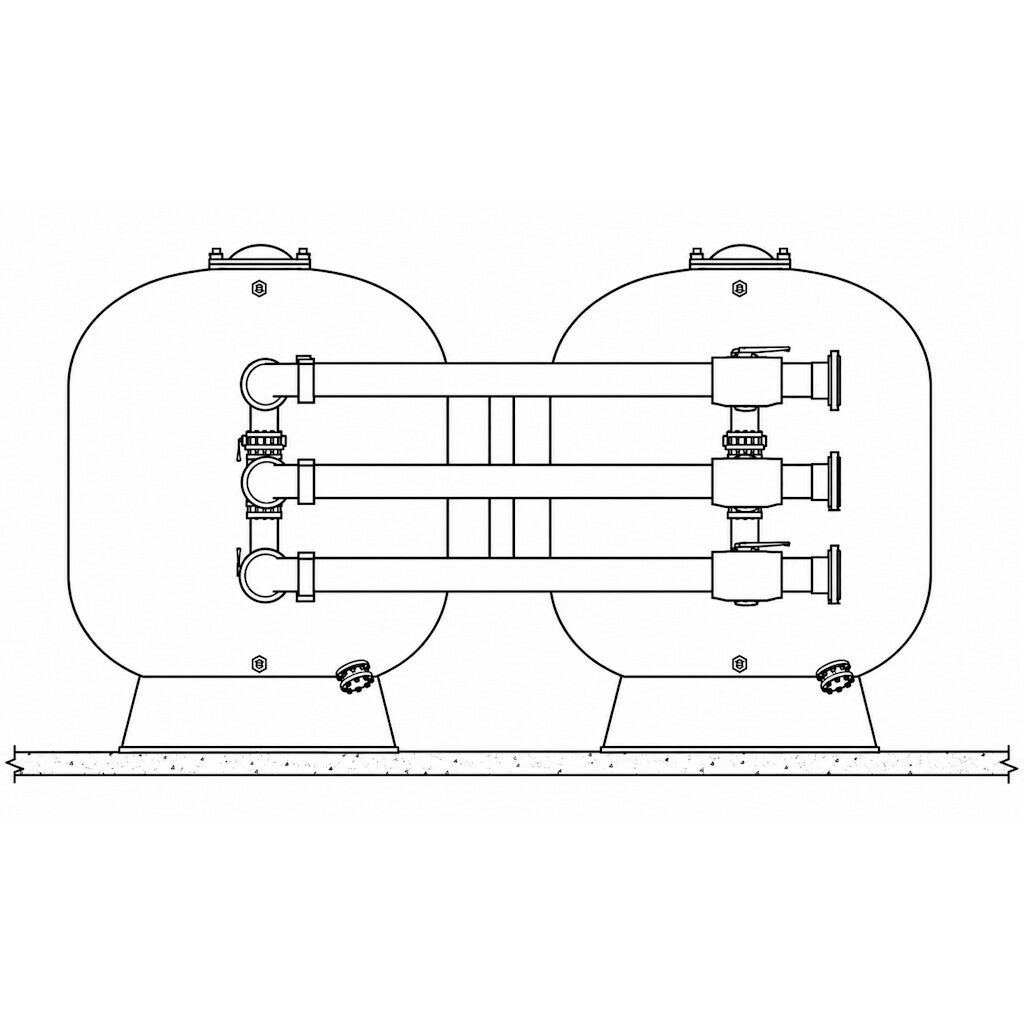

Dual Tank Systems
Performance Characteristics & Media Requirements
Single Tank Systems
| Model | Tank Dia. | Filter Area | Rate And Capacity | Filter Media | Shipping Weight |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 gp | 15 GP 6hrs |
15 GP 8hrs |
20 gm | 20 GP 6hrs |
20 GP 8hrs |
1/8"-1/4" Gravel |
#20 Sand |
Bed Depth |
||||
| VCOM-42 | 42" | 9.32 sf | 139 | 50,040 | 66,720 | 186 | 66,960 | 89,280 | 6 | 22 | 36" | 445 |
| VCOM-47 | 47" | 12.17 sf | 182 | 65,820 | 87,360 | 244 | 87,840 | 117,120 | 10 | 25 | 36" | 555 |
| VCOM-55 | 55" | 16.56 sf | 249 | 89,640 | 119,520 | 332 | 119,520 | 159,360 | 14 | 30 | 36" | 640 |
| VCOM-63 | 63" | 21.63 sf | 325 | 149,600 | 156,000 | 432 | 155,520 | 207,360 | 16 | 40 | 36" | 795 |
| VCOM-71 | 71" | 27.38 sf | 410 | 150,000 | 196,800 | 546 | 176,560 | 262,080 | 28 | 50 | 36" | 905 |
| VCOM-79 | 79" | 33.80 sf | 507 | 182,520 | 243,360 | 676 | 243,360 | 324,470 | 33 | 62 | 36" | 1,015 |
| VCOM-93 | 93" | 46.69 sf | 699 | 251,781 | 335,708 | 932 | 335,708 | 447,611 | 47 | 112 | 36" | 1,318 |
Bed depth and shipping weights (in pounds) are approximate. Gravel and sand media requirements are in cubic feet. Systems do not include pumps or filter media.
Dual Tank Systems
| Model | Tank Dia. | Filter Area | Rate And Capacity | Filter Media | Shipping Weight |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 gp | 15 GP 6hrs |
15 GP 8hrs |
20 gm | 20 GP 6hrs |
20 GP 8hrs |
1/8"-1/4" Gravel |
#20 Sand |
Bed Depth |
||||
| VCOM-2-42 | 42" | 18.52 sf | 278 | 100,080 | 133,440 | 372 | 133,920 | 178,560 | 12 | 44 | 36" | 900 |
| VCOM-2-47 | 47" | 24.32 sf | 364 | 131,040 | 174,780 | 488 | 175,680 | 234,270 | 20 | 50 | 36" | 1,054 |
| VCOM-2-55 | 55" | 33.16 sf | 498 | 179,280 | 239,080 | 664 | 239,040 | 318,720 | 28 | 60 | 36" | 1,278 |
| VCOM-2-63 | 63" | 43.28 sf | 650 | 234,000 | 312,000 | 864 | 311,040 | 414,720 | 32 | 80 | 36" | 2,580 |
| VCOM-2-71 | 71" | 54.68 sf | 820 | 205,200 | 393,600 | 1,092 | 393,120 | 524,160 | 56 | 100 | 36" | 1,728 |
| VCOM-2-79 | 79" | 67.60 sf | 1,014 | 365,040 | 485,720 | 1,352 | 486,720 | 648,960 | 66 | 124 | 36" | 2,165 |
| VCOM-2-93 | 93" | 93.38 sf | 1,400 | 504,000 | 672,000 | 1,868 | 672,480 | 896,640 | 94 | 224 | 36" | 2,580 |
Bed depth and shipping weights (in pounds) are approximate. Gravel and sand media requirements are in cubic feet. Systems do not include pumps or filter media.

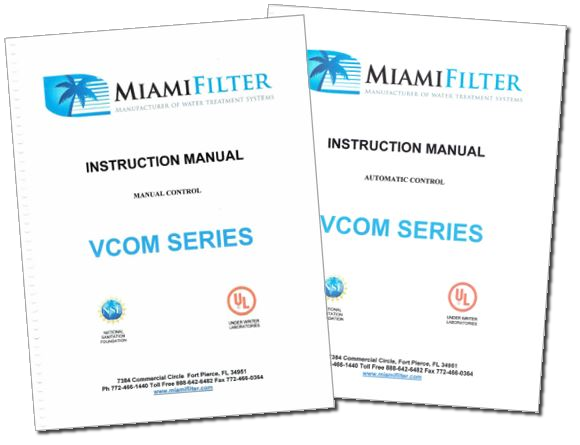

Want to learn more to ensure your system performs at its best for years to come? Download these detailed instruction manuals that discusses every system component including installation, operation, and maintenance.
Choosing the Right Tank
While the goal of every filtration system is the same, to produce clean, reliable water, selecting the right filter vessel is one of the most important decisions in the design process. Carbon steel and composite vessels each offer distinct advantages depending on the application, operating conditions, water chemistry, installation requirements, and long term maintenance expectations. Understanding the strengths of each option will help ensure your filtration system delivers the performance, reliability, and value your project demands for years to come.
Feature
Carbon Steel
Composite
High pressure applications
Large custom vessels
Elevated temperatures
Lightweight installation
Natural corrosion resistance
Minimal maintenance
Industrial & municipal systems
Commercial pools & aquatics
Corrosive water applications
Custom engineered designs
Legend: ✓ = Excellent Choice, ◐ = Suitable for Many Applications, ✗ = Generally Not the Preferred Choice. Note: Carbon steel provides excellent corrosion resistance when used with the proper protective coating or lining.
In short, if your application involves demanding operating conditions, high pressures, elevated temperatures, or large custom vessels, a carbon steel filter tank is typically the best choice. When corrosion resistance, lower weight, and ease of installation are the primary concerns, a composite filter tank is often the better solution.
Still confused? Have a special need? Fear not because our experts can help you select the best solution based on your application, water chemistry, operating conditions, and long-term maintenance requirements.
