Standard Steel Filters

Since 1958, Miami Filter has set the standard for high-performance commercial filtration systems, delivering proven reliability to facilities across the United States and around the world.

The SFV (Vertical) and HH (Horizontal) Series of Hi-Flow Sand Filters represent the next evolution of that legacy, combining decades of engineering expertise with modern manufacturing precision.

Designed for demanding water treatment applications, these systems provide exceptional flow capacity, consistent filtration performance, and long-term durability in both single and dual tank configurations.



Reliability, Simplicity, Longevity

Engineered for ease of use and long service life, SFV and HH Series filters come fully equipped with essential system components, including gauge panels, control valves, face piping, and integrated internal assemblies. From hydraulically balanced internal piping to factory-installed under drain systems guaranteed for the life of the tank, every component is engineered to maximize efficiency and reliability.

With thoughtful features such as optional single-lever valve control and factory-installed accessories, these systems simplify operation while maintaining optimal performance.

With robust construction, advanced protective coatings, and optional stainless steel configurations, the SFV Series is designed to perform in even the most demanding environments.

Design Features

  • Designed, engineered, and manufactured in-house
  • National Sanitation Foundation compliant
  • ASME accredited vessels
  • Under drain system and all internal piping guaranteed for life of the tank
  • Factory installed sacrificial anodes extend equipment lifespan
  • Influent/effluent gauge panel, automatic air bleeder, backwash sight glass, control valves, and face piping are all standard accessories
  • Interior wetted surfaces are "spark tested" and visually inspected for pin-holes or voids



Miami Filter’s PVC protective coating systems are available for all standard steel filters, providing exceptional corrosion resistance, long-term durability, and reliable protection for demanding water treatment applications.

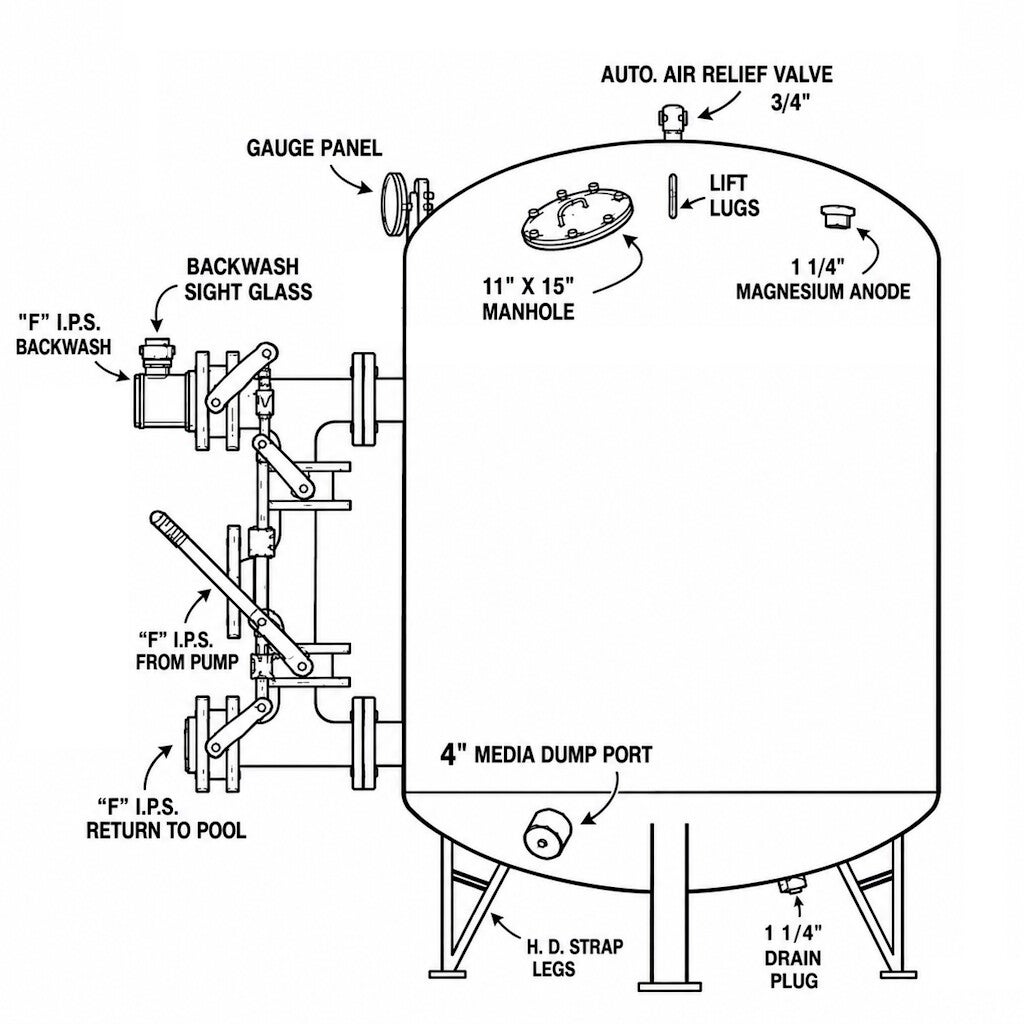

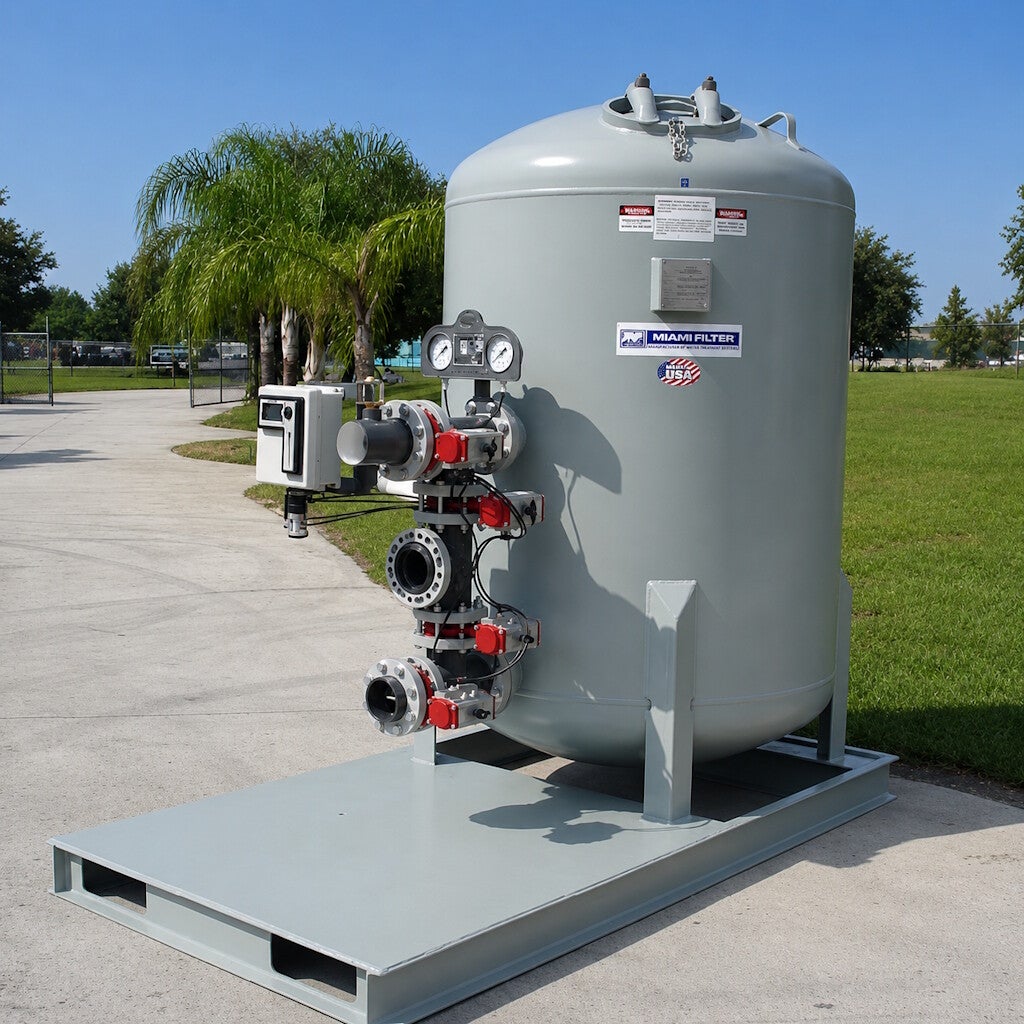

Single Tank Systems

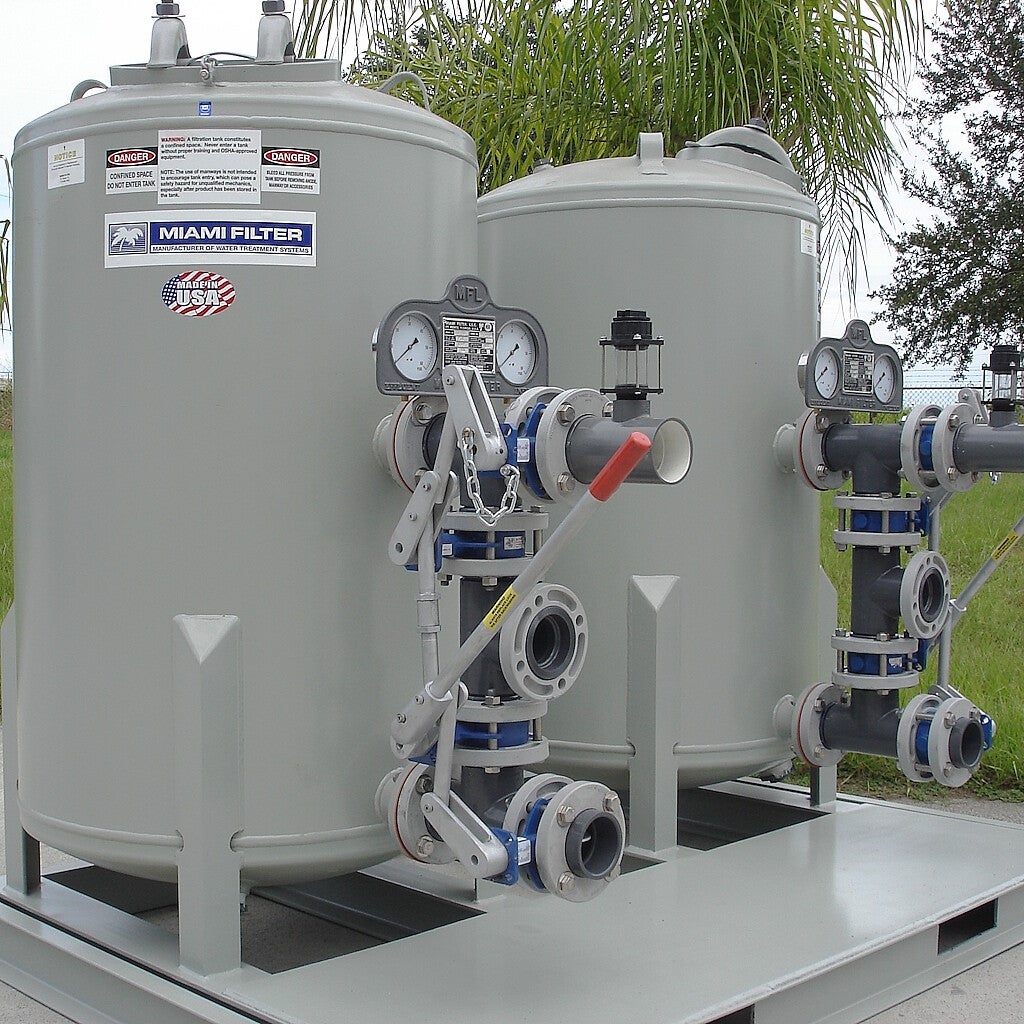

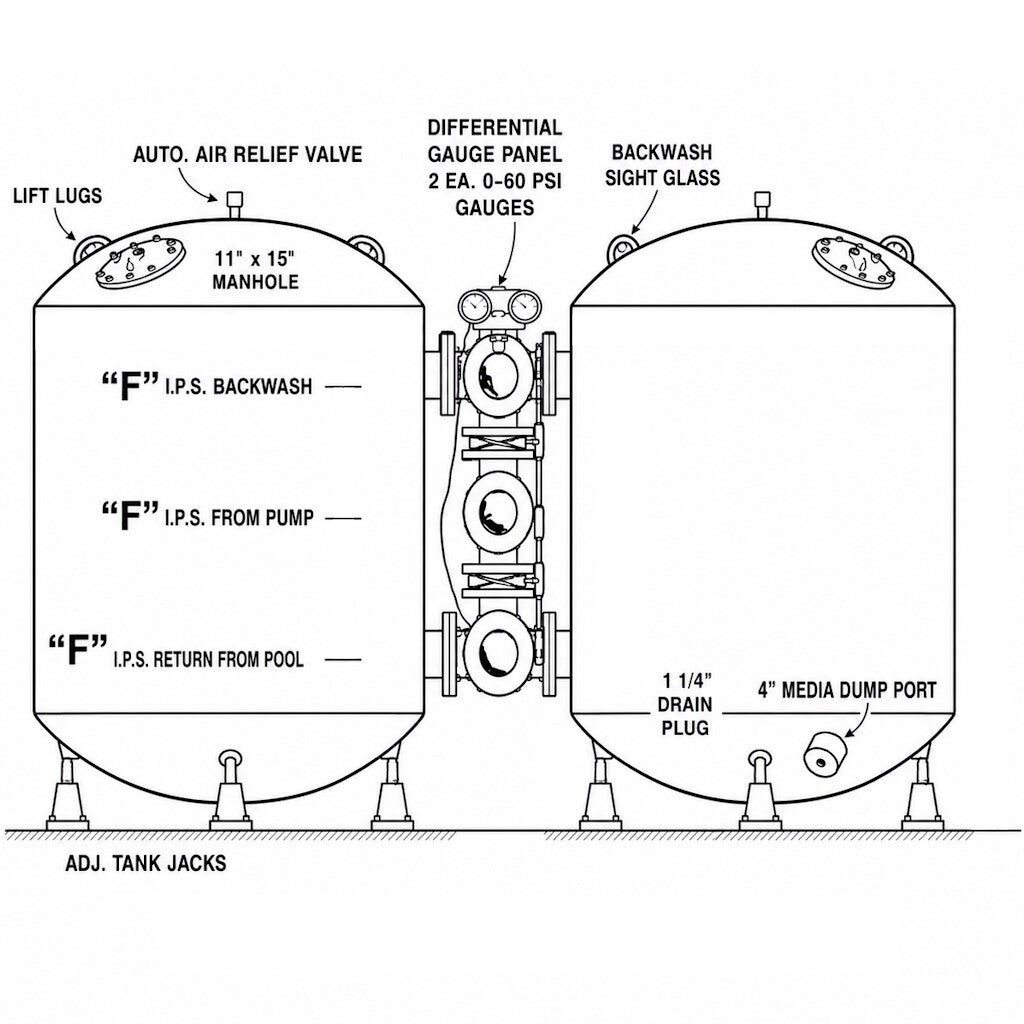

Dual Tank Systems

Performance Characteristics & Media Requirements

Single Tank Systems

Model Tank Dia. Filter Area Rate And Capacity Filter Media Shipping
Weight
15 gp 15 GP
6hrs		 15 GP
8hrs		 20 gm 20 GP
6hrs		 20 GP
8hrs		 1/8"-1/4"
Gravel		 #20
Sand		 Bed
Depth
SFV-36 36" 7.1 sf 107 38,520 51,360 142 51,120 68,160 5 15 24" 770
SFV-42 42" 9.6 sf 144 51,840 69,120 192 69,120 92,160 7 20 24" 920
SFV-48 48" 12.6 sf 238.5 69,120 90,720 252 90,720 120,960 12 24 24" 1,120
SFV-54 54" 15.9 sf 238.5 85.860 114,480 318 114,480 152,640 16 32 24" 1,290
SFV-60 60" 19.6 sf 294 105,840 141,120 392 141,120 188,160 20 40 24" 1,465
SFV-66 66" 23.7 sf 355.5 127,980 170,640 392 170,640 227,520 24 48 24" 1,640
SFV-72 72" 28.3 sf 424.5 152,820 203,760 566 203,760 271,680 28 56 24" 1,820
SFV-78 78" 33.2 sf 498 179,280 239,040 664 239,040 318,720 33 66 24" 1,970
SFV-84 84" 38.5 sf 577.5 207,900 277,200 770 277,200 369,600 38 76 24" 2,240
SFV-90 90" 44.2 sf 663 238,680 318,240 884 318,240 424,320 44 88 24" 2,550
SFV-96 96" 50.3 sf 754.5 271,620 362,160 1,006 362,160 482,880 50 1001/ 1252 24"1/ 30"2 2,8201/ 2,9202
SFV-102 102" 56.7 sf 850.5 306,180 408,240 1,134 408,240 544,320 57 1151/ 1402 24"1/ 30"2 3,3301/ 3,6002
SFV-108 108" 63.6 sf 954 343,440 457,920 1,272 457,920 610,560 64 160 30" 3,850
SFV-114 114" 70.9 sf 1,036.5 382,860 510,480 1,418 510,480 680,640 72 180 30" 4,420
SFV-120 120" 78.5 sf 1,117.5 423,900 565,200 1,570 565,200 753,600 79 200 30" 5,220
SFV-144 144" 113.1 sf 1,696.5 610,740 814,320 2,262 814,320 1,085,760 115 290 30" 6,800

Bed depth and shipping weights (in pounds) are approximate.  Gravel and sand media requirements are in cubic feet. Systems do not include pumps or filter media. 1. Data for 15 gm capacity.  2. Data for 20 gm capacity.

Dual Tank Systems

Model Tank Dia. Filter Area Rate And Capacity Filter Media Shipping
Weight
15 gp 15 GP
6hrs		 15 GP
8hrs		 20 gm 20 GP
6hrs		 20 GP
8hrs		 1/8"-1/4"
Gravel		 #20
Sand		 Bed
Depth
SFV-248 48" 25.2 sf 378 136,080 181,080 504 181,440 241,920 24 48 24" 2,110
SFV-254 54" 31.8 sf 477 171,720 228,960 636 228,960 305,280 32 64 24" 2,490
SFV-260 60" 39.2 sf 588 211,680 282,240 784 282,240 376,320 40 80 24" 2,840
SFV-266 66" 47.4 sf 711 255,960 341,280 948 341,280 455,040 48 96 24" 3,190
SFV-272 72" 56.6 sf 849 305,640 407,520 1,132 407,520 543,360 56 140 30" 3,250
SFV-278 78" 66.4 sf 996 358,560 478,080 1,328 478,080 637,440 66 165 30" 3,840
SFV-284 84" 77 sf 1,155 415,800 554,400 1,540 554,440 739,200 76 190 30" 4,350
SFV-290 90" 88.4 sf 1,326 477,360 636,480 1,768 636,480 848,640 88 220 30" 4,970
SFV-296 96" 100.6 sf 1,509 543,240 724,320 2,012 724,320 965,760 100 250 30" 5,460
SFV-2102 102" 113.4 sf 1,701 612,360 816,480 2,268 816,480 1,088,640 144 280 30" 6,340
SFV-2108 108" 127.2 sf 1,908 686,880 915,840 2,544 915,840 1,221,120 128 320 30" 7,440
SFV-2114 114" 141.8 sf 2,127 765,720 1,020,960 2,836 1,020,960 1,361,280 144 360 30" 8,560
SFV-2120 120" 157 sf 2,335 847,800 1,130,400 3,140 1,130,400 1,507,200 158 400 30" 10,160
SFV-2144 144" 226.2 sf 3,393 1,221,480 1,628,640 4,524 1,628,640 2,171,520 230 580 30" 13,600

Bed depth and shipping weights (in pounds) are approximate.  Gravel and sand media requirements are in cubic feet. Systems do not include pumps or filter media.

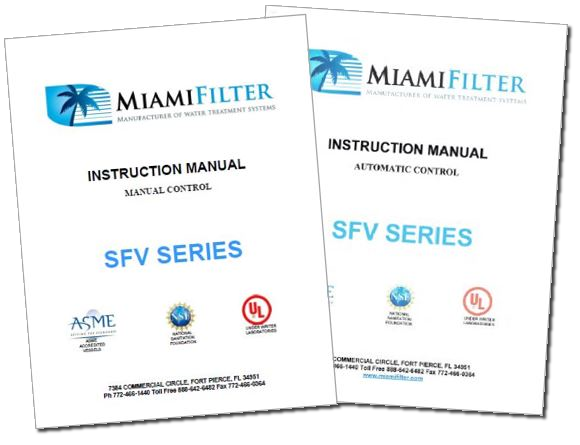

Want to learn more to ensure your system performs at its best for years to come? Download these detailed instruction manuals that discusses every system component including installation, operation, and maintenance.

Choosing the Right Tank

While the goal of every filtration system is the same, to produce clean, reliable water, selecting the right filter vessel is one of the most important decisions in the design process. Carbon steel and composite vessels each offer distinct advantages depending on the application, operating conditions, water chemistry, installation requirements, and long term maintenance expectations. Understanding the strengths of each option will help ensure your filtration system delivers the performance, reliability, and value your project demands for years to come.

Feature

Carbon Steel

Composite

High pressure applications

Large custom vessels

Elevated temperatures

Lightweight installation

Natural corrosion resistance

Minimal maintenance

Industrial & municipal systems

Commercial pools & aquatics

Corrosive water applications

Custom engineered designs

Legend: ✓ = Excellent Choice, ◐ = Suitable for Many Applications, ✗ = Generally Not the Preferred Choice. Note: Carbon steel provides excellent corrosion resistance when used with the proper protective coating or lining.

In short, if your application involves demanding operating conditions, high pressures, elevated temperatures, or large custom vessels, a carbon steel filter tank is typically the best choice. When corrosion resistance, lower weight, and ease of installation are the primary concerns, a composite filter tank is often the better solution.

Still confused? Have a special need?  Fear not because our experts can help you select the best solution based on your application, water chemistry, operating conditions, and long-term maintenance requirements.
