Protective Coating Systems
Miami Filter’s protective coating systems provide long-term corrosion protection for steel filtration tanks used in demanding commercial and industrial water treatment applications.
Specially formulated for potable water service, our coatings create a durable PVC barrier that completely encapsulates the tank internally and externally, helping protect against corrosion, chemical exposure, and premature equipment deterioration.
NSF accepted and engineered for long service life, our coatings combine the structural strength of heavy steel construction with the corrosion resistance benefits of a fully coated PVC lining system.
The Application Process
The application process is performed entirely in-house at Miami Filter’s Fort Pierce, Florida manufacturing facility to ensure complete quality control throughout production.

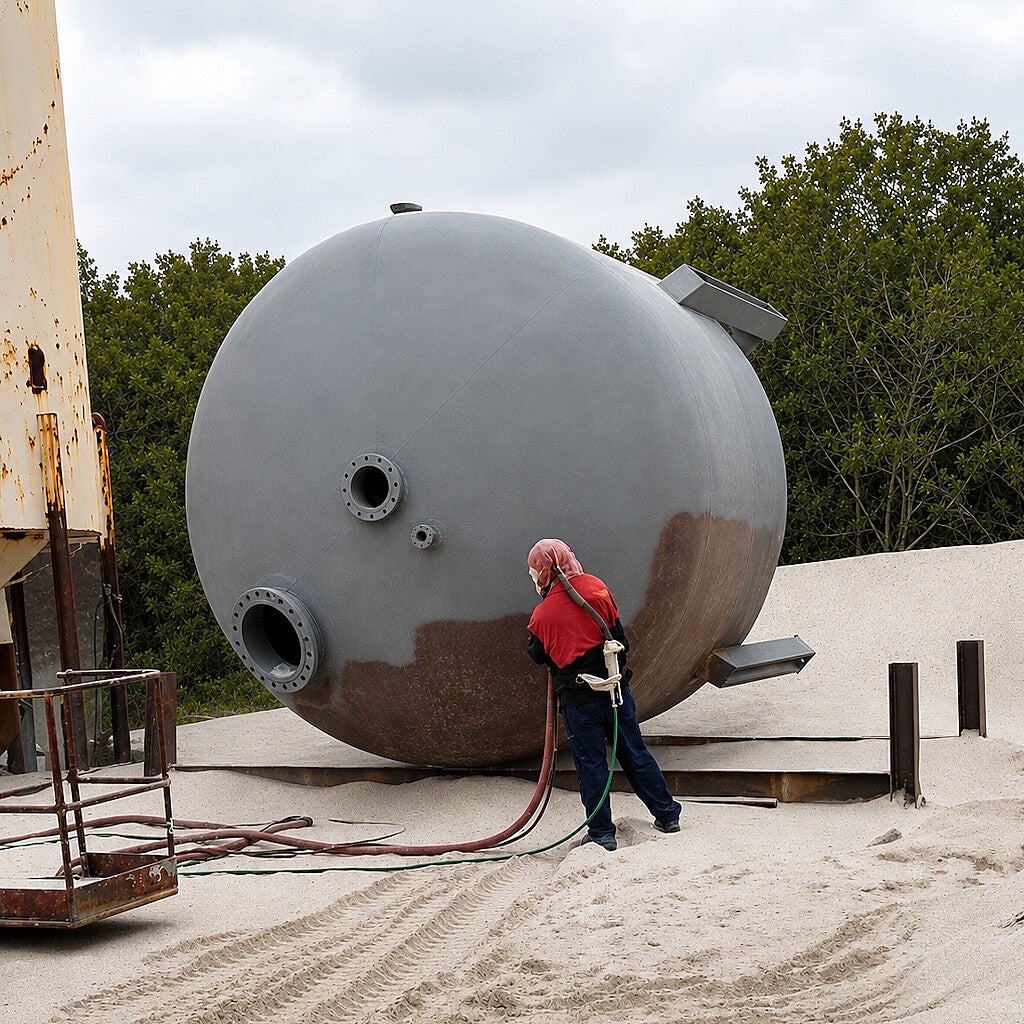

Following ASME-compliant sub-arc welding and hydrotesting, tanks are sandblasted to white metal, oven baked to remove all moisture, and coated with a specially formulated primer that is thermally cured for maximum adhesion.
The PVC coatings are then applied internally and externally to a minimum thickness of 40 mils before final curing at 350 degrees, followed by spark testing to verify a continuous, defect-free protective barrier.
Features / Benefits
- Complete internal and external PVC tank protection
- Minimum 40 mil coating thickness
- NSF accepted for potable water applications
- Excellent corrosion and chemical resistance
- Protects against rust and threaded connection deterioration
- Heavy-duty steel construction with PVC barrier protection
- ASME-compliant tank fabrication
- Sub-arc welded inside and out
- White metal sandblasted surface preparation
- Thermally cured primer and coating application
- Spark tested for coating integrity and quality assurance
- Suitable for demanding commercial and industrial environments
- Available on tanks up to 144 inches in diameter
- Long-term durability and reduced maintenance requirements
Miami Filter’s PVC protective coating systems are available for all steel tanks, providing exceptional corrosion resistance, long-term durability, and reliable protection for demanding water treatment applications.
Want to learn more about all the products, components, and parts we offer? Download our entire Product Catalog that includes sizing and technical specifications and contact us for a free, no obligation quote.
The Best Materials Make The Best Products
Outstanding protective coating systems begin with outstanding materials. That's why Miami Filter partners with industry leading manufacturers whose products have earned a reputation for exceptional performance in demanding environments. From premium primers and high performance epoxies to advanced sealers and specialty coatings, we select proven products from trusted names such as Carboline and Tnemec to provide long lasting protection against corrosion, abrasion, moisture, and harsh chemicals.
